Close Control Precision Air Handling Unit 35KW Floor Standing

Name: Close Control Precision Air Handling Unit 35KW Floor Standing
Brand: Coolent
Price: 1 USD

China Close Control Precision Air Handling Unit 35KW Floor Standing wholesale

Brand Name : Coolent

Model Number : CYAS23D/U

Certification : ISO/CE

Place of Origin : China

MOQ : 1

Price : to be Negotiated

Payment Terms : T/T

Supply Ability : 1000/Month

Delivery Time : 4W

Packaging Details : WOODEN

cooling capacity : 35KW

Mounting : Floor Standing

Condition : New

Type : Chilled water unit

After-sales service provided : Engineers available to service machinery overseas

Operating voltage : 380/400 VAC,230 VAC,220V

Warranty : 1 Year

Product name : Data Center Cooling Unit

Refrigerant : R22(R407C/R410A)

Application : Computer Room,Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten,Industrial,Heat recovery,adjust cold/heat/humidity

Color : Black/Grey white/other custom colors

Power : 3N-380V-50Hz,220v/50hz/60hz

Airflow : 35000 m3/h

Contact Now

Closed Control Precision Air Conditioning Floor Standing Unit 35KW

Product Introduction

Coolnet Cybermaster precise air conditioning is dedicated to the equipment room and machinery room that place communication apparatus, computers, precise instruments, etc.

Coolnet precise air conditioning can achieve efficiency controlling of the ambient temperature and humidity with more precision than normal type of air ocnidtioners, in this way, the long-term stable and continuously run of the unit can be guaranteed.

Advantages

1. High quality
2. R410a, R22

3. Model range: 20kw to 90kw

4. Long term stable and continuously run

5. Modular design, flexible installation.

6. Several air outlet directions to meet different installation requirements.

Air Supply Method

Close Control Precision Air Handling Unit 35KW Floor Standing

Features

IDC rooms solutions
Precise air conditioning, can control temperature, humidity and particle filtration within tight tolerances 24 hours a day and can be remotely monitored.

Higher reliable scroll compressor

Famous brand, Copeland, high efficient scroll compressor.

Immersed electrode humidifier

High reliability, well-known brand.

High efficient indoor & outdoor motors

Well-known brand, Ziehl-Abegg.

Double wall casing design, improve heat insulation

Heat-insulated casing can prevent the condensate from the unit body.

Galvanized steel sheet of nitrogen treatment and powder spray coating make the casing of indoor unit anti-rust and fire resistance.

Technical Parameters

Model: CYA		T26D/U	T31D/U	T35D/U	T41D/U	T45D/U	T50D/U	T55D/U	T61D/U	T70D/U	T76D/U	T85D/U	T90D/U	T100D/U
Power Supply		380V 3Ph-50HZ
Air Discharge		Upflow/Downflow
Cooling Capacity :24℃/50%RH
Total Capacity (1)	KW	26.9	31.9	35.9	41.9	45.3	50.5	55.4	61.4	70.5	76.2	85.5	90.8	102
Sensible	KW	24.8	29.5	33.1	38.8	42.5	47.8	51.6	57.5	65.2	71.2	79.5	84.5	95.7
AEER	W/W	3.6	3.6	3.6	3.6	3.6	3.7	3.7	3.6	3.6	3.6	3.6	3.6	3.6
Air Flow	m³/h	8000	9500	10000	11500	13000	15500	16000	17500	18500	20500	22500	23500	24200
Compressor Hermetic scroll
Refrigerant		R407C
Compressor quantity	PC	2	2	2	2	2	2	2	2	2	2	2	2	2
Fan Section Centrifugal fan (Optional EC)
Fan quantity	PC	2	2	2	2	2	2	2	2	2	3	3	3	3
Rated current	A	4.3	4.3	4.3	4.4	4.4	4.4	5	5.2	5.2	6.5	16.5	16.5	16.5
Rated power	W	1600	1600	1800	1800	2000	2000	3000	3300	3900	3900	5400	6300	6300
Total heating capacity	KW	6	6	6	9	9	9	9	9	9	12	12	12	12
Material		PTC
Humidifier Section Electrode type
Capacity	Kg/h	5	5	5	5	13	13	13	13	13	13	13	13	13
Rated Current	A	6	6	6	6	15	15	15	15	15	15	15	15	15
Condenser Model		2*58	2*58	2*58	2*58	2*80	2*80	2*100	2*100	2*120	2*150	2*150	2*165	2*180

Certificates

Close Control Precision Air Handling Unit 35KW Floor Standing

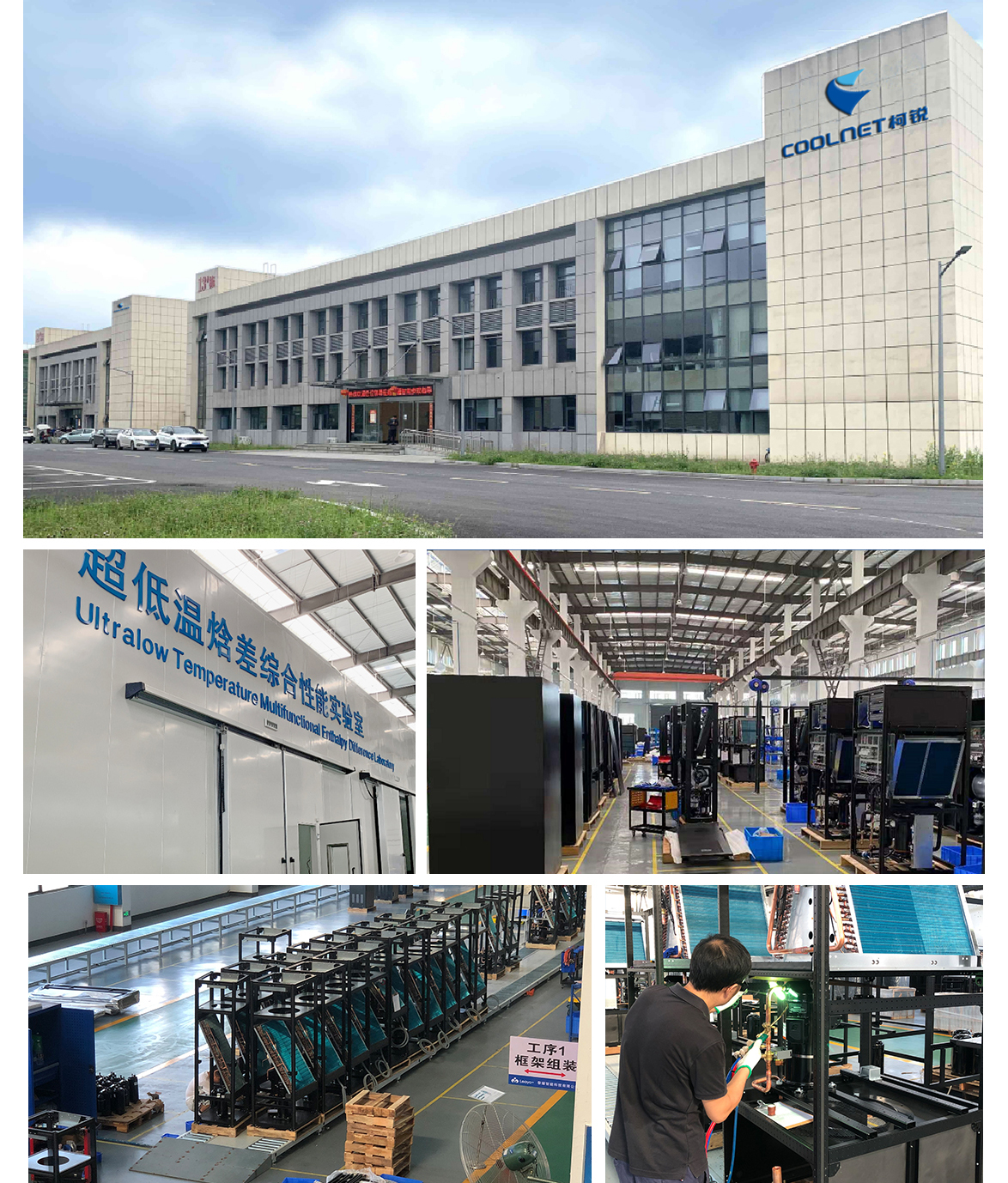

Factory Details
